Alternative and pressure-dosed septic systems

Why gravity trenches often do not work in Piedmont soil

A conventional gravity system relies on effluent flowing downhill out of the tank into deep trenches, usually 18 to 36 inches down, and soaking away sideways and down. It is simple, cheap and durable — in the right soil.

Piedmont red clay is not that soil, for three specific reasons.

• The best soil is at the top. Structure — the way clay particles aggregate into peds with cracks and channels between them — is strongest in the upper horizons and degrades with depth. Dig a trench three feet down and you have placed the effluent into the densest, least permeable material on the site while the good soil sits above it, doing nothing.
• Gravity dumps. When someone drains a bathtub, all of it hits the first few feet of trench at once. That end of the line stays saturated, goes anaerobic, and seals with biomat while the far end never gets wet. Uneven loading is what kills gravity fields early in clay.
• No rest period. Soil needs to drain and re-aerate between doses for aerobic bacteria to keep the biomat thin. A continuously trickling trench never gets that.

Every alternative system on this page is solving one or more of those three problems. Shallow placement uses the good soil. Pressure dosing distributes flow evenly along the entire line. Timed or demand dosing gives the soil hours of rest between applications. Once you see it that way, the technology stops being mysterious.

Add Henry County’s hills, where the field is often uphill from the house and effluent has to be pumped regardless, and pressure-dosed systems become the regional default rather than an exotic option.

The four alternatives, in plain English

Scroll the table sideways to see every column

Two things to take from that table. First, cost climbs with treatment level, and so does the amount of attention the system needs for the rest of its life. Second, none of these is chosen by preference — the soil evaluation determines which one your site requires. If you want the cheapest system your soil will honestly support, the leverage is in the evaluation and design stage, not in shopping installers.

How a pumped system actually works

Worth understanding, because it makes every troubleshooting step below make sense.

1. Septic tank. Same as always — solids settle, grease floats, clarified effluent leaves through an outlet baffle, ideally through an effluent filter.
2. Pump tank (dosing tank). A separate chamber, commonly 500 to 1,000 gallons, holding the pump. Effluent accumulates here between doses.
3. Floats. Usually three, sometimes four, hanging on a bracket. From the bottom up: off (stops the pump before it runs dry), on (starts the pump), high-water alarm (tells you the pump did not run). Some systems add a redundant off float. The vertical spacing between on and off sets the dose volume — that spacing is engineered, not arbitrary, and moving a float changes how your field is loaded.
4. Pump. An effluent pump, typically 1/2 to 1 horsepower, drawing on the order of 6 to 12 amps at 115 or 230 volts. It must generate enough pressure to squirt water out of every orifice in the network, not just to move it uphill.

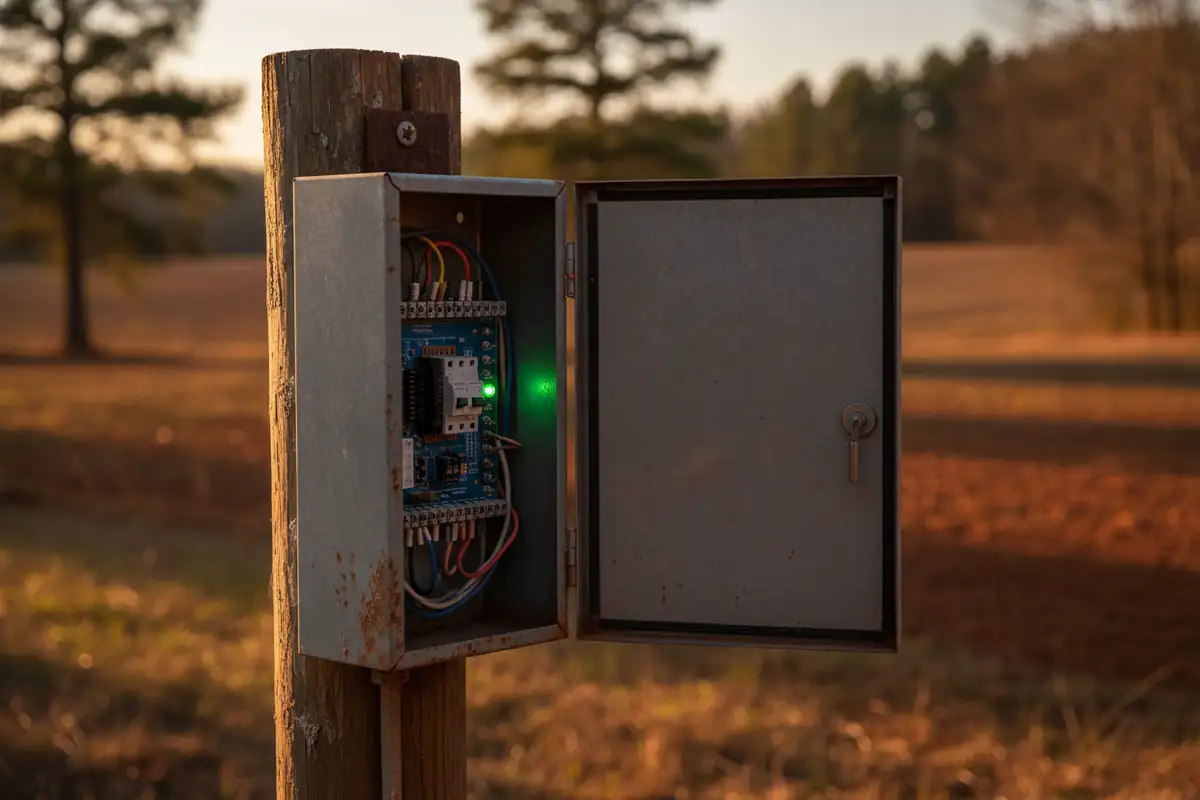

5. Control panel. Mounted where you can see it, usually near the house or on a post by the tank. Contains the breaker or fuses, the motor contactor, the alarm circuit with its own separate power, and on timed systems, a timer. The alarm is on a separate circuit deliberately — so that a tripped pump breaker still leaves the alarm working.
6. Distribution network. LPP laterals, drip zones, or a manifold to a sand filter, plus flush valves or turn-ups at the ends of the lines for maintenance.

The key idea: a dose is a measured event. Perhaps 40 to 100 gallons pushed out over a couple of minutes, then hours of nothing while the soil drains and breathes. That rest interval is the whole point, and it is why bypassing the controls to “just keep the pump running” destroys the field.

The alarm is going off — what to do

First, understand what you have: roughly one day of reserve. Most pump tanks hold 250 to 500 gallons above the alarm float, and a family of four uses 200 to 300 gallons a day. Cut water use immediately. Then work down this list.

Scroll the table sideways to see every column

The silence button is your friend; the reset button is not. Silencing the buzzer while you arrange service is fine. Resetting a fault repeatedly is how a $200 capacitor becomes a $2,500 pump.

What you are signing up for: operating requirements

This is the part that does not get explained often enough at the time of sale, and it is the main reason we would rather you understood the trade-off up front.

In Virginia, alternative onsite sewage systems carry ongoing operation and maintenance obligations under the AOSS regulations. For typical residential flows of 1,000 gallons per day or less, a DPOR-licensed operator must visit the system at least once every twelve months, with an initial visit within 180 days of the operation permit being issued. Larger flows require more — systems above 1,000 gallons per day step to quarterly visits, and above 10,000 gallons per day to monthly. The operator files reports with VDH.

What a visit typically includes:

• Opening the tanks and measuring sludge and scum
• Testing the alarm and checking panel operation, contactors and connections
• Verifying pump run time and amp draw, and checking float positions and function
• Cleaning or replacing the effluent filter
• On drip systems, checking filters, running flush cycles and verifying zone pressures
• On ATUs, checking the blower, diffusers and mixed liquor condition
• Walking the dispersal area for wet spots, odor, erosion and settlement
• Sampling where the permit requires it

Beyond the operator visits, the tank still needs pumping — typically every three to five years for a household, and VDH guidance points to at least every five years. Budget the operator contract and the pump-out together and you have an honest picture of running cost.

The obligation runs with the property, not with you. If you sell, the buyer inherits it, and a system with a clean service history and current operation permit is worth real money at closing.

Power outages, generators and what happens when the pump stops

Rural power in this region goes out. Ice storms, summer thunderstorms, trees on lines. So plan for it.

What actually happens: effluent accumulates in the pump tank. When it passes the alarm float, the alarm sounds — but if the power is out, the alarm is out too on most systems. You have the tank reserve, roughly a day for a normal household, and then effluent backs up toward the septic tank and eventually the house.

What to do during an outage: treat water like it is rationed. No laundry, short showers, run the dishwasher only when full, and expect the system to need a full cycle to catch up when power returns. A household that carries on normally through a two-day outage will back up.

Generator considerations. If you have a standby generator, the septic pump circuit belongs on it — people wire the well pump and forget the effluent pump, which is exactly backwards, since the well pump is what fills the septic system. With a portable generator, the pump needs a properly wired inlet and transfer arrangement; do not backfeed and do not run an extension cord to a control panel. That is licensed electrician work.

ATUs are the special case. The blower runs continuously to keep aerobic bacteria alive. A long outage kills that biology and the unit takes days to weeks to recover full treatment. If your system is an ATU, generator backup is worth more than it is on an LPP system.

Extended vacancy is the other version of this problem. An ATU at a house sitting empty for months starves — the bacteria have nothing to eat. Tell your operator before a long absence rather than after.

What these systems cost to run

Real annual numbers, so you can compare against the install price.

Scroll the table sideways to see every column

Habits that protect any of them, and matter more than any product you can buy:

• Nothing but human waste and toilet paper down the toilet. No wipes, even the ones labeled flushable — they do not break down and they wrap pump impellers.
• No grease down the drain. It floats to the top of the tank, and once the scum layer reaches the outlet it goes straight to the field.
• Spread laundry across the week. Four loads on Saturday is the single most common cause of a Saturday-night alarm.
• Keep the dispersal area clear. No vehicles, no livestock, no trailers, no above-ground pool, no raised beds. Grass over it, and nothing else.
• Keep roof and driveway runoff away from the field, and keep gutters discharging well clear of it.
• Do not plant trees near the lines. Willow, poplar and maple roots find drip tubing and LPP laterals.

What we would talk you out of

• An ATU when LPP will do. Aerobic units are excellent technology and they are the right answer on genuinely constrained sites. They are also more expensive to buy, more expensive to run, and more sensitive to how a household lives. If your soil evaluation says low-pressure pipe works, take the LPP.
• Bypassing or adjusting the controls yourself. Moving a float to make the alarm stop, or wiring a pump to run continuously, defeats the dose-and-rest cycle the entire design depends on. It will quiet the alarm and destroy the field.
• Skipping the operator contract to save money. Beyond the fact that Virginia requires it on alternative systems, the visit is what catches a failing float or a fouling filter while it is still a small repair. Going three years without a visit to save a few hundred dollars is a poor trade against a $15,000 field.
• Garbage disposals on any of these systems. A disposal roughly doubles the solids load into the tank. On a conventional system it means pumping more often. On a drip system it is a genuinely bad idea.
• Chasing a cheap install. Pressure-dosed systems are unforgiving of sloppy work — lateral elevations, orifice sizing, pump curve matching and flush access all have to be right or the field loads unevenly and fails early. This is the one place where the low bid usually costs the most.
• Water softener discharge into an ATU without asking. High-salinity backwash can upset the biology. Ask your designer where it should go before you plumb it.
